Характеристики
| Diode Type | TVS, Unidirectional |
| Voltage, Stand-off | 5.8V |
| Voltage, Vbr | 6.8V |
| Power, Peak Pulse | 1500W |
| Typ Capacitance Cd @ Vr | 9500pF |
| Case Style | CB-429 |
| No. of Pins | 2 |
| Body Diameter | 5.1mm |
| Current, Ifs Max | 200A |
| Current, Ir Max | 1000µA |
| Current, Ir Vbr Measurement Min | 10mA |
| Current, Itsm | 200A |
| External Length / Height | 9.8mm |
| JEDEC Number | 1N6284CA |
| Lead Diameter | 1.06mm |
| Max Reverse Leakage Current | 1000µA |
| Peak Pulse Current | 746A |
| Peak Pulse Current IPP @ 10/1000µs | 143A |
| Power, Ptot | 5W |
| Temperature Coefficient | 5.7ppm/°C |
| Temperature, Full Power Rating | 75°C |
| Termination Type | Axial Leaded |
| Uni / Bi Directional Polarity | Unidirectional |
| Voltage, Breakdown Max | 7.48V |
| Voltage, Breakdown Min | 6.45V |
| Voltage, Clamping 8/20µs Max | 13.4V |
| Voltage, Clamping Max | 10.5V |
| Voltage, Vrrm | 5.8V |

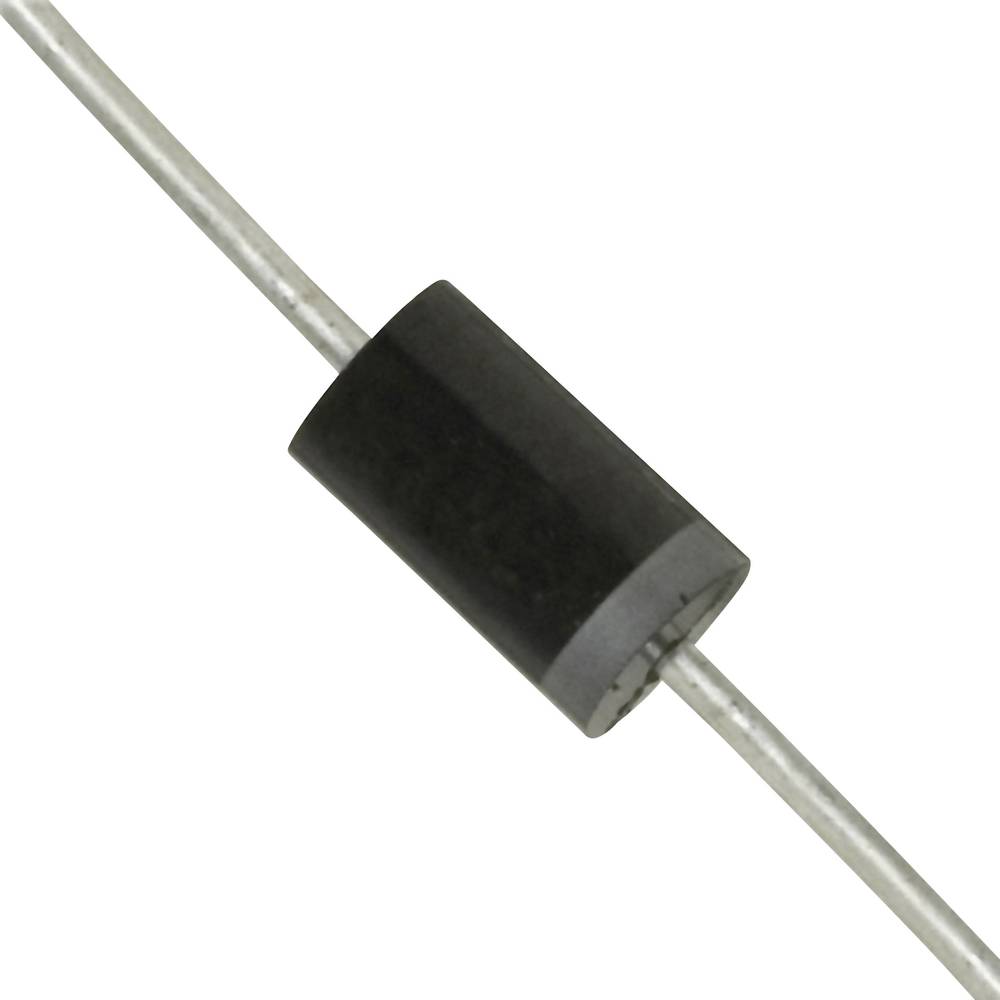

1.5KE6V8ASTMicroelectronicsTVS Diodes
