Характеристики
| No. of Contacts | 20Contacts |
| Gender | Plug |
| Product Range | 101 Series |
| Contact Termination Type | Solder Cup |
| Connector Mounting | Cable Mount |
| Contact Plating | Gold Plated Contacts |
| Contact Material | Copper Alloy |
| SVHC | No SVHC (15-Jan-2018) |
| Connector Mounting Orientation | Cable |
| Connector Type | Micro D Ribbon |
| Contact Termination | Solder |
| Current Rating | 1A |
| D Sub Connector Type | Micro D |
| Flammability Rating | UL94V-0 |
| Insulation Resistance | 500Mohm |
| Material | Steel |
| Operating Temperature Max | 105°C |
| Operating Temperature Min | -55°C |
| Pitch Spacing | 1.27mm |
| Terminal Plating | Gold |
| Termination Method | Solder |
| Withstand Voltage | 500V |

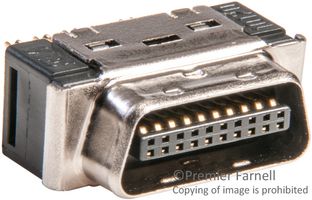

10120-3000PE3MD-Sub Connectors
