Характеристики
| Direction Type | Uni-Directional |
| Reverse Stand-off Voltage Max. V | 15.3 |
| Clamping Voltage V | 25.5 |
| Peak Pulse Power Dissipation kW | 1 |
| Peak Pulse Current A | 39.2 |
| Breakdown Voltage Min. V | 17.1 |
| Breakdown Voltage Max. V | 18.9 |
| Operating Temperature Max. °C | 150 |
| Operating Temperature Min. °C | -65 |
| Reverse Leakage Current Max. uA | 1 |
| Voltage ESD Air Gap Max. kV | 30 |
| Voltage ESD Contact Max. kV | 30 |
| Pins | 2 |
| Package Type | DO-214AB |
| Mounting Type | SMD |
| MSL | Level-1 |
| Packaging | Tape & Reel |
| Reflow Temperature Max. °C | 217 |

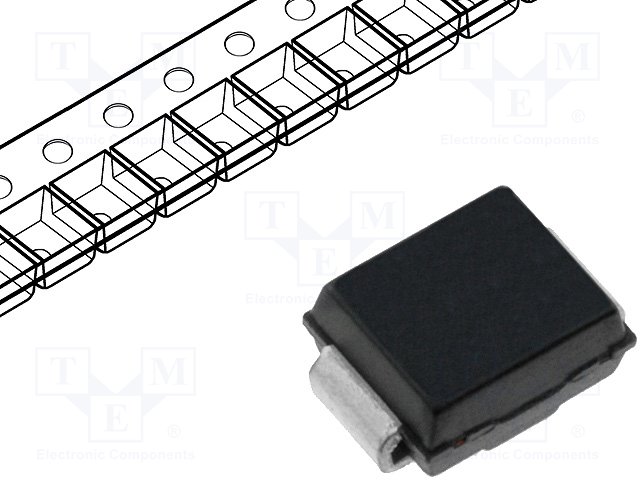

1KSMB18ALittelfuseTVS Diodes
