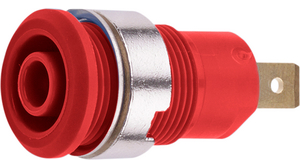

23.3000-22
Stäubli
Connectors
Характеристики
| Socket Mount | Panel Mount |
| Socket Diameter | 4 mm |
| Panel Mount | Threaded |
| Contact Material | Brass |
| Contact Plating | Gold |
| Insulation Material | Polyamide (PA) |
| Rated Current A | 24 |
| Rated Voltage AC kVAC | 1 |
| Rated Voltage DC kVDC | 1 |
| Orientation | Straight |
| Overall Length mm | 31.5 |
| Colour | Red |
| Termination Type | Blade Terminal, 4.8 x 0.8 mm |
PDF23.3000-22StäubliConnectors
