Характеристики
| Memory Size KB | 64 |
| Organisation | 8 k x 8 Bit |
| Interfaces | I²C |
| Clock Frequency Max. kHz | 400 |
| Access Time ns | 900 |
| Data Retention Years | 200 |
| Supply Current mA | 3 |
| Supply Voltage Min. V | 2.5 |
| Supply Voltage Max. V | 5.5 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 85 |
| Package Type | NSOIC |
| Pins | 8 |
| Mounting Type | SMD |
| Packaging | Tube |
| Length mm | 4.9 |
| Width mm | 3.9 |
| Height mm | 1.5 |
| Reflow Temperature Max. °C | 260 |

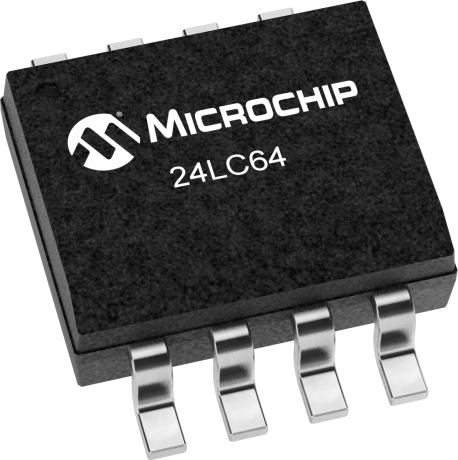

24LC64-I/SNMicrochipEEPROM
