Характеристики
| Resistance kOhm | 2 |
| Tolerance (±) % | 10 |
| Power Rating mW | 250 |
| Adjustment Type | Side |
| Number of Turns | 12 |
| Orientation | Right Angle |
| Operating Temperature Min. °C | -65 |
| Operating Temperature Max. °C | 150 |
| Termination Type | J-Lead |
| Mounting Type | SMD |
| Series | 3224 |
| Length mm | 4.6 |
| Width mm | 4.8 |
| Height mm | 3.71 |

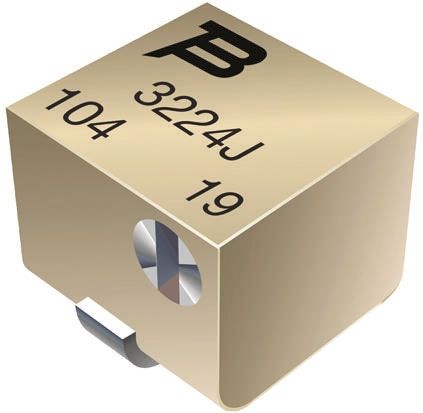

3224J-1-202EBournsVariable Resistors and Potentiometers
