Характеристики
| Resistance MOhm | 5 |
| Tolerance (±) % | 10 |
| Power Rating mW | 500 |
| Adjustment Type | Side |
| Number of Turns | 25 |
| Orientation | Right Angle |
| Operating Temperature Min. °C | -55 |
| Operating Temperature Max. °C | 125 |
| Termination Type | PCB Pins |
| Mounting Type | Through Hole |
| Series | 3296 |
| Length mm | 9.5 |
| Width mm | 4.8 |
| Height mm | 10 |

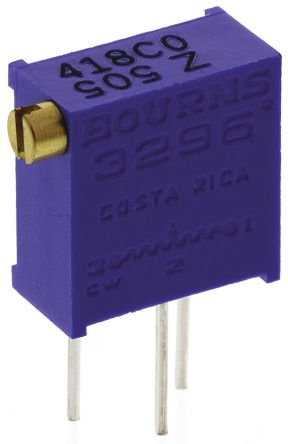

3296Z-1-505LFBournsVariable Resistors and Potentiometers
