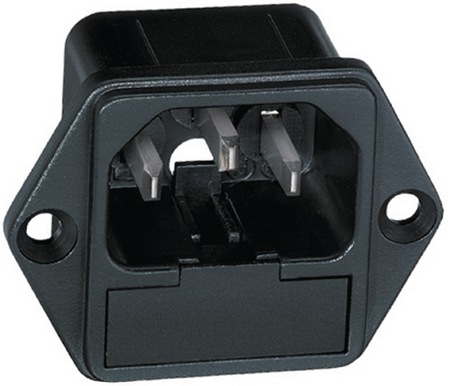

4304.6020
Schurter
Power Connectors
250 V / 250 V
Характеристики
| Gender | Inlet |
| Colour | Black |
| Termination Type | Quick Connect Terminal, 6.3 mm |
| Housing Material | Polyamide |
| Fuse | 2-Pole |
| Current Rating A | 10 |
| Inlet Type | C14 |
| Combustibility Class | UL 94 V-0 |
| UL Rating | 10 A |
| Standards Met | CE |
| Standards Met | CSA |
| Standards Met | CQC |
| Standards Met | IEC |
| Standards Met | REACH |
| Standards Met | SEMKO |
| Standards Met | UL Listed |
| Voltage Rating V | 250 |
| Connector Mounting Type | Screw Mounting |
| IEC Rating | 10 A |
| Operating Temperature Max. °C | 70 |
| Fuse Size | 5 x 20 mm |
| Mounting Orientation | Front |
| Protection Class | I |
| Operating Temperature Min. °C | -25 |
| IP Rating | IP20 |
| Switch Type | None |
