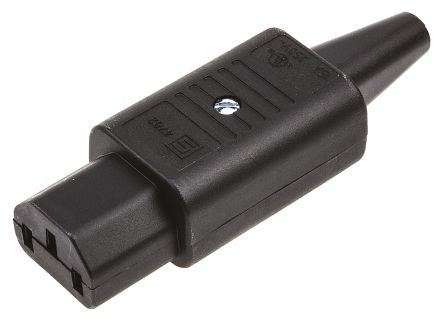

4782.0000
Schurter
Power Connectors
3 x 18 AWG / 250 V / 250 V
Характеристики
| Gender | Outlet |
| Colour | Black |
| Termination Type | Cable Terminal |
| Housing Material | Thermoplastic |
| IEC Connector Type | C13 |
| Body Orientation | Straight |
| Wire Size | 3 x 1 mm² |
| Current Rating A | 10 |
| Combustibility Class | UL 94 V-0 |
| UL Rating | 15 A |
| Standards Met | CE |
| Standards Met | CSA |
| Standards Met | CQC |
| Standards Met | IEC |
| Standards Met | REACH |
| Standards Met | UL Listed |
| Standards Met | VDE |
| Voltage Rating V | 250 |
| IEC Rating | 10 A |
| Operating Temperature Max. °C | 70 |
| Protection Class | I |
| Operating Temperature Min. °C | -25 |
| Connector Mounting Type | Cable Mount |
| Switch Type | None |
| Fuse | None |
