Характеристики
| Character Size | 10.9mm |
| LED Colour | Red |
| Common Connection | Common Anode |
| Luminous Intensity | 1.115mcd |
| Forward Current If | 20mA |
| Forward Voltage | 2.1V |
| SVHC | No SVHC (20-Jun-2011) |
| Background Colour | Grey |
| Character Type | 8. |
| Current If Luminous Intensity | 20mA |
| External Depth | 6.35mm |
| External Length / Height | 19.05mm |
| External Width | 12.7mm |
| Forward Current If Max | 20mA |
| Forward Voltage VF Max | 2.8V |
| Forward Voltage per Segment @ If | 2.8V |
| Lead Spacing | 2.54mm |
| Luminous Intensity per Segment @ If Typ | 4.4mcd |
| No. of Characters | 1 |
| Nom Current If per Segment | 60mA |
| Operating Temperature Range | -40°C to +100°C |
| PIV Max | 3V |
| Row Pitch | 7.62mm |

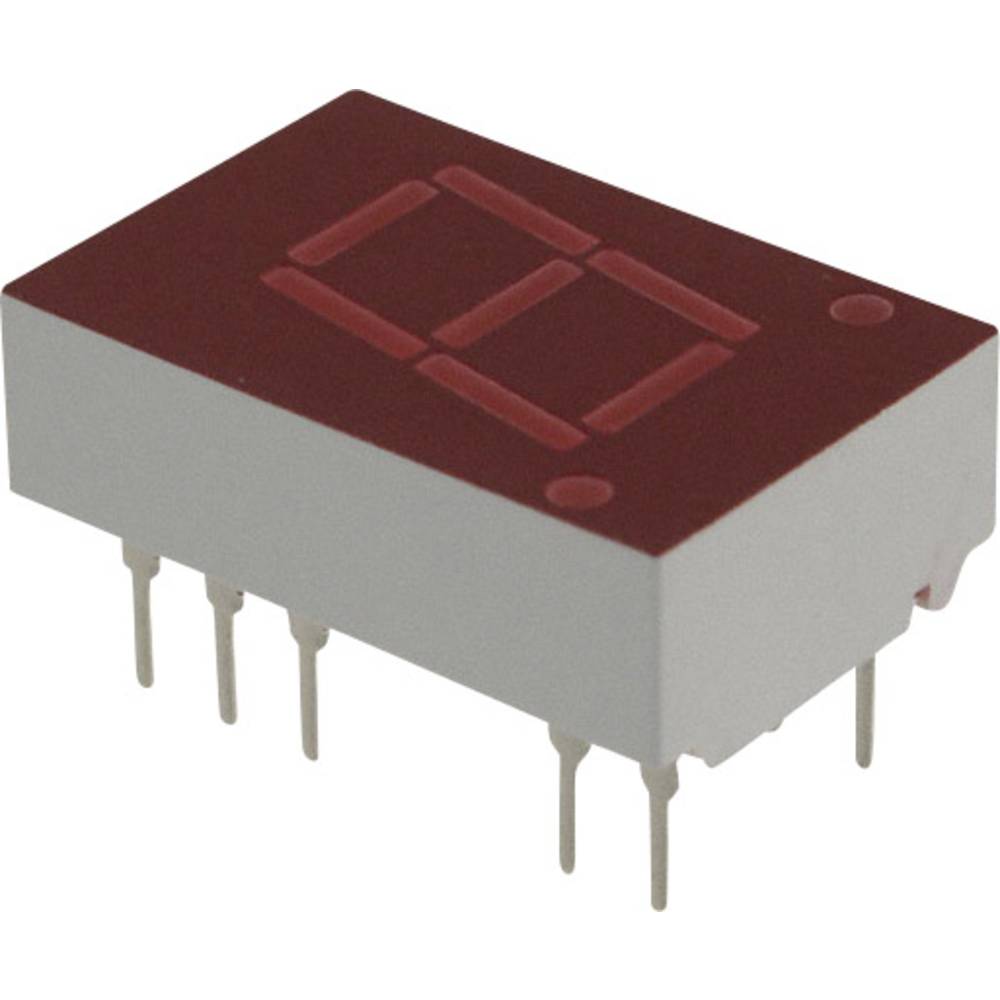

5082-7651AvagoLED Displays
