Характеристики
| Direction Type | Bi-Directional |
| Reverse Stand-off Voltage Max. V | 12 |
| Clamping Voltage V | 19.9 |
| Peak Pulse Power Dissipation kW | 5 |
| Peak Pulse Current A | 256.3 |
| Breakdown Voltage Min. V | 13.3 |
| Breakdown Voltage Max. V | 14.7 |
| Operating Temperature Max. °C | 175 |
| Operating Temperature Min. °C | -55 |
| Reverse Leakage Current Max. uA | 2 |
| Voltage ESD Air Gap Max. kV | 30 |
| Voltage ESD Contact Max. kV | 30 |
| Pins | 2 |
| Package Type | P600 |
| Mounting Type | SMD |
| Packaging | Tape & Reel |
| Reflow Temperature Max. °C | 260 |

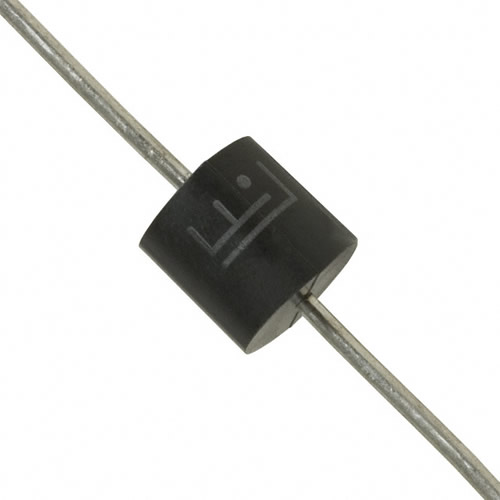

5KP12CALittelfuseTVS Diodes
