Характеристики
| Product Type | Common Mode Power Line Choke |
| Core | Ferrite |
| Inductance mH | 2 |
| Voltage Rating VAC | 250 |
| Current Rating mA | 500 |
| Shielding | Unshielded |
| Attenuation dB | 64 |
| Maximum DC Resistance mOhm | 540 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 125 |
| Series | WE-CMB |
| Pins | 4 |
| Termination Type | Radial Leads |
| Mounting Type | Through Hole |
| Length mm | 17.5 |
| Width mm | 13 |
| Height mm | 22 |

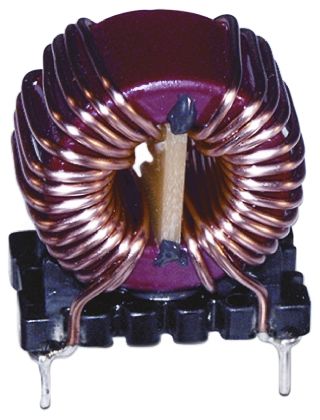

744822120Wurth ElektronikFixed Inductors
