Характеристики
| Secondary DC Resistance mOhm | 150 |
| Primary DC Resistance mOhm | 150 |
| Width mm | 15.4 |
| Ratio | 1:1.1 |
| Operating Temperature Max. °C | 125 |
| Length mm | 12.3 |
| Operating Temperature Min. °C | -40 |
| Rated Current A | 1 |
| Frequency Max. kHz | 150 |
| Height mm | 11.9 |
| Frequency Min. kHz | 150 |
| Operating Voltage | 5 VDC |
| Inductance uH | 440 |
| Insulation Voltage kV | 5 |

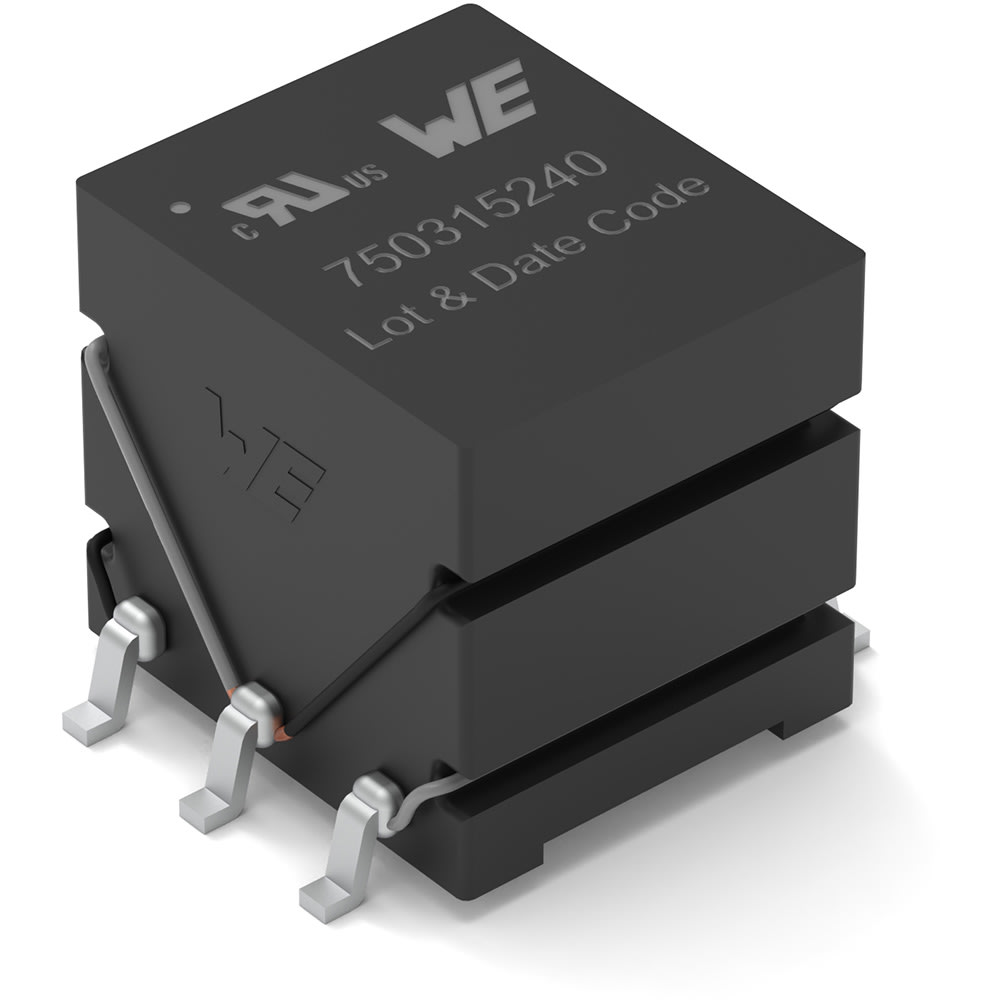

750315240Wurth ElektronikTransformers
