Характеристики
| Contact Configuration | SPST-NO |
| Switch Operation | Off-(On) |
| Contact Voltage AC Nom | 250V |
| Contact Voltage DC Nom | 5V |
| Contact Current Max | 10A |
| Actuator Style | Dome |
| Switch Terminals | PCB |
| Actuator / Cap Colour | Red |
| Illumination Colour | Red |
| SVHC | No SVHC (15-Dec-2010) |
| Actuation Type | Dome |
| Behind Panel Depth | 29.5mm |
| Colour | Red |
| Contact Configuration | SPST-NO |
| Contact Current @ Contact Voltage AC Max | 5A |
| Contact Current AC Max | 10A |
| Contact Material | Silver |
| Contact Resistance | 25mohm |
| Dielectric Strength VDC | 1kV |
| External Diameter | 30mm |
| External Length / Height | 38.5mm |
| Flammability Rating | UL94-HB |
| IP/NEMA Rating | IP67 |
| Insulation Resistance | 1000Mohm |
| Length | 38.5mm |
| No. of Electrical Operations | 100000 |
| No. of Mechanical Operations | 10000000 |
| Operating Force | 12.75N |
| Operating Temperature Max | 80°C |
| Operating Temperature Min | -40°C |
| Panel Cutout Diameter | 22.5mm |
| Series | 76-91 |
| Switch Operation | Off-(On) |

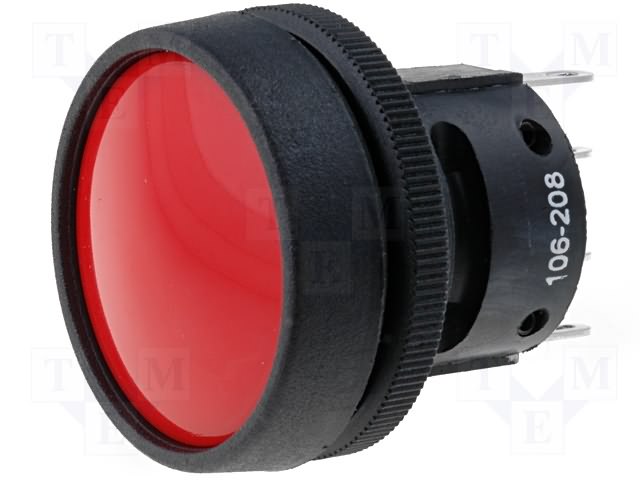

76-9112/439088ITW SwitchesPushbutton Switches
