Характеристики
| Contact Configuration | 1CO |
| Monitoring Current Min. - AC A | 2 |
| Monitoring Current Max. - AC A | 20 |
| Contact Current - AC A | 5 |
| Contact Current - DC A | 5 |
| Contact Voltage - AC V | 250 |
| Contact Voltage - DC V | 250 |
| Operating Voltage Min. V | 20.4 |
| Operating Voltage Max. V | 26.4 |
| Power Consumption VA | 3 |
| Frequency Min. Hz | 40 |
| Frequency Max. Hz | 70 |
| Termination Type | Screw Terminal |
| Mounting Type | DIN Rail Mount |
| Protection Rating | IP30 |
| Width mm | 17.5 |
| Height mm | 90 |
| Depth mm | 97 |

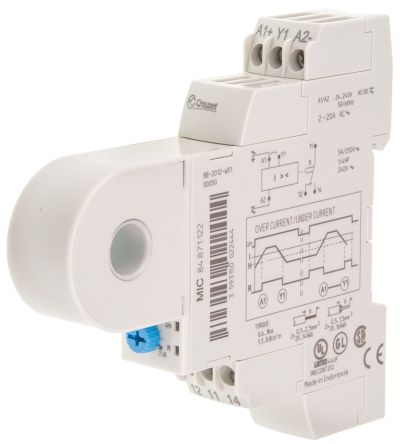

84871122CrouzetPower Relays
