Характеристики
| Protection Rating | IP30 |
| Contact Configuration | 2CO |
| Termination Type | Screw Terminal |
| Mounting Type | DIN Rail Mount |
| Contact Voltage - DC V | 250 |
| Contact Voltage - AC V | 250 |
| Contact Current - DC A | 5 |
| Contact Current - AC A | 5 |
| Width mm | 35 |
| Measuring Voltage - AC Max. V | 60 |
| Series | C-Lynx |
| Measuring Voltage - AC Min. mV | 200 |
| Measuring Voltage - DC Min. mV | 200 |
| Measuring Voltage - DC Max. V | 60 |
| Frequency Max. Hz | 60 |
| Depth mm | 60 |
| Power Consumption VA | 3.5 |
| Height mm | 90 |
| Operating Voltage Max. - AC V | 264 |
| Operating Voltage Min. V | 20 |
| Operating Voltage Max. - DC V | 264 |
| Switching Capacity kVA | 1.25 |
| Frequency Min. Hz | 50 |

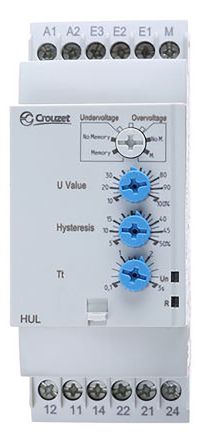

84872120CrouzetPower Relays
