Характеристики
| Number of Phases | 3 |
| Phase Monitoring Functions | Phase Sequence |
| Phase Monitoring Functions | Phase Failure |
| Phase Monitoring Functions | Phase Asymmetry |
| Operating Voltage Max. - AC V | 528 |
| Operating Voltage Min. V | 183 |
| Contact Configuration | 1CO |
| Mounting Type | DIN Rail Mount |
| Phase Monitoring Voltage Max. V | 528 |
| Phase Monitoring Voltage Min. V | 183 |
| Phase Asymmetric Measurement Max. % | 15 |
| Phase Asymmetric Measurement Min. % | 5 |
| Power Consumption VA | 22 |
| Protection Rating | IP30 |
| Switching Capacity kVA | 1.25 |
| Switching Current A | 5 |
| Switching Voltage - AC V | 250 |
| Switching Voltage - DC V | 250 |
| Termination Type | Screw Terminal |
| Series | C-Lynx |
| Width mm | 18 |
| Height mm | 90 |
| Depth mm | 60 |

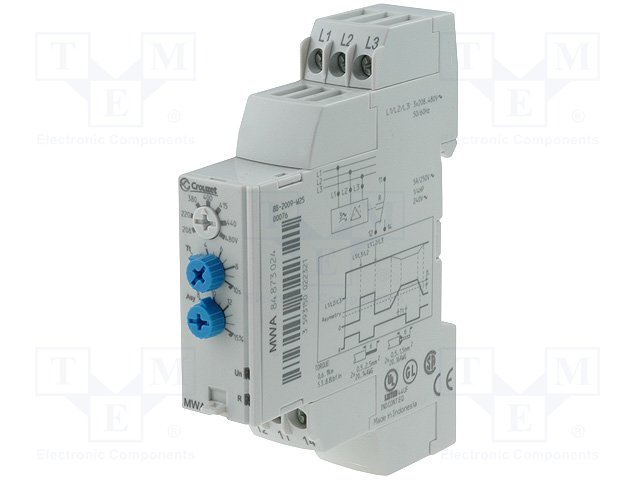

84873024CrouzetPower Relays
