Характеристики
| Series | Mate-N-Lok |
| For Use With | 0.140 MATE-N-LOK Connectors |
| Contact Gender | Pin |
| Contact Material | Copper |
| Contact Plating | Tin |
| Contact Termination | Crimp |
| Wire Size (AWG) | 14 to 10 AWG |
| Cable Diameter Max | 4.5mm |
| Cable Diameter Min | 2.5mm |
| Connector Type | Contact, Crimp |
| Connector Type | Contact, Crimp |
| Contact Material | Copper Alloy |
| Contact Plating | Pre-Tin |
| Current Rating | 28A |
| Gender | Plug |
| Termination Method | Crimp |
| Voltage Rating VAC | 250V |
| Voltage Rating VDC | 250V |
| Wire Area Size Max | 5.3mm² |
| Wire Area Size Min | 2.1mm² |
| Wire Size | 10AWG |
| Wire Size AWG Max | 10AWG |
| Wire Size AWG Min | 14AWG |
| Wire Size Range (AWG) | 10 |

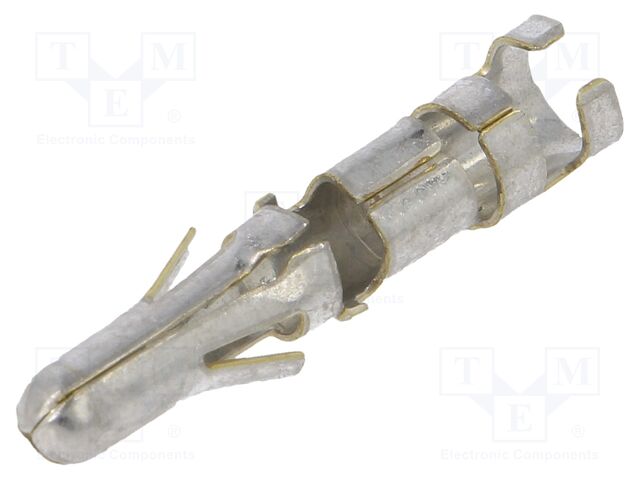

925662-1TE Connectivity / AMPRectangular Connectors
