Характеристики
| Series | A |
| Switch Function Type | Mom-Off-Mom |
| Contact Configuration | SPDT |
| Voltage, Contact AC Max | 28V ac |
| Voltage, Contact DC Max | 28V ac |
| Max Contact Current AC | 100mA |
| Max Contact Current DC | 100mA |
| Terminal Type | THT |
| Contact Current @ Contact Voltage AC Max | 0.1A |
| Contact Current @ Contact Voltage AC Min | 0.1mA |
| Contact Current @ Contact Voltage DC Max | 0.1A |
| Contact Current @ Contact Voltage DC Min | 0.1mA |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Dielectric Strength, VDC | 500V ac |
| External Depth | 6mm |
| External Length / Height | 23.1mm |
| Height | 8.5mm |
| Height Above Panel | 4.5mm |
| Lead Spacing | 2.54mm |
| Lever Length | 10mm |
| Material | Glass Fibre Reinforced Polyamide |
| Mounting Type | Vertical |
| No. of Electrical Operations | 50000 |
| No. of Mechanical Operations | 50000 |
| No. of Poles | 1 |
| Pin Length | 3.1mm |
| Power, Switching VA Max | 0.4VA |
| Resistance, Contact Max | 50mohm |
| Resistance, Insulation | 500Mohm |
| Temp, Op. Max | 85°C |
| Temp, Op. Min | -30°C |
| Voltage, Contact AC Min | 20mV |

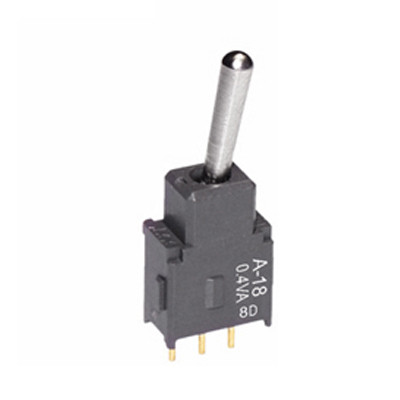

A18APNKK SwitchesToggle Switches
