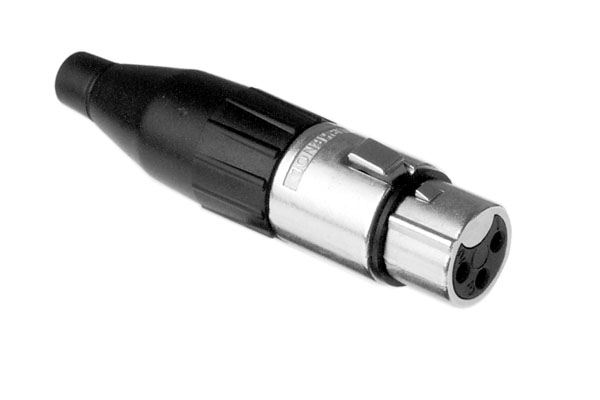

AC3F
Amphenol
Audio / Video Connectors
SOCKET, XLR, NICKEL, 3POLE
Характеристики
| No. of Contacts | 3Contacts |
| Gender | Socket |
| Connector Mounting | Cable Mount |
| Contact Plating | Tin Plated Contacts |
| Connector Body Material | Metal Body |
| Product Range | AC Series |
| Colour | Nickel |
| Connector Colour | Natural |
| Contact Resistance | 3mohm |
| Contact Termination | Solder |
| Current Rating | 15A |
| Flammability Rating | UL94V-0 |
| Insulation Resistance | 1000Mohm |
| Mechanical Life | 1000 mating cycles |
| Operating Temperature Max | 75°C |
| Operating Temperature Min | -25°C |
| Termination Method | Solder |
| Voltage Rating VAC | 50V |
| Wire Size AWG Max | 14AWG |
