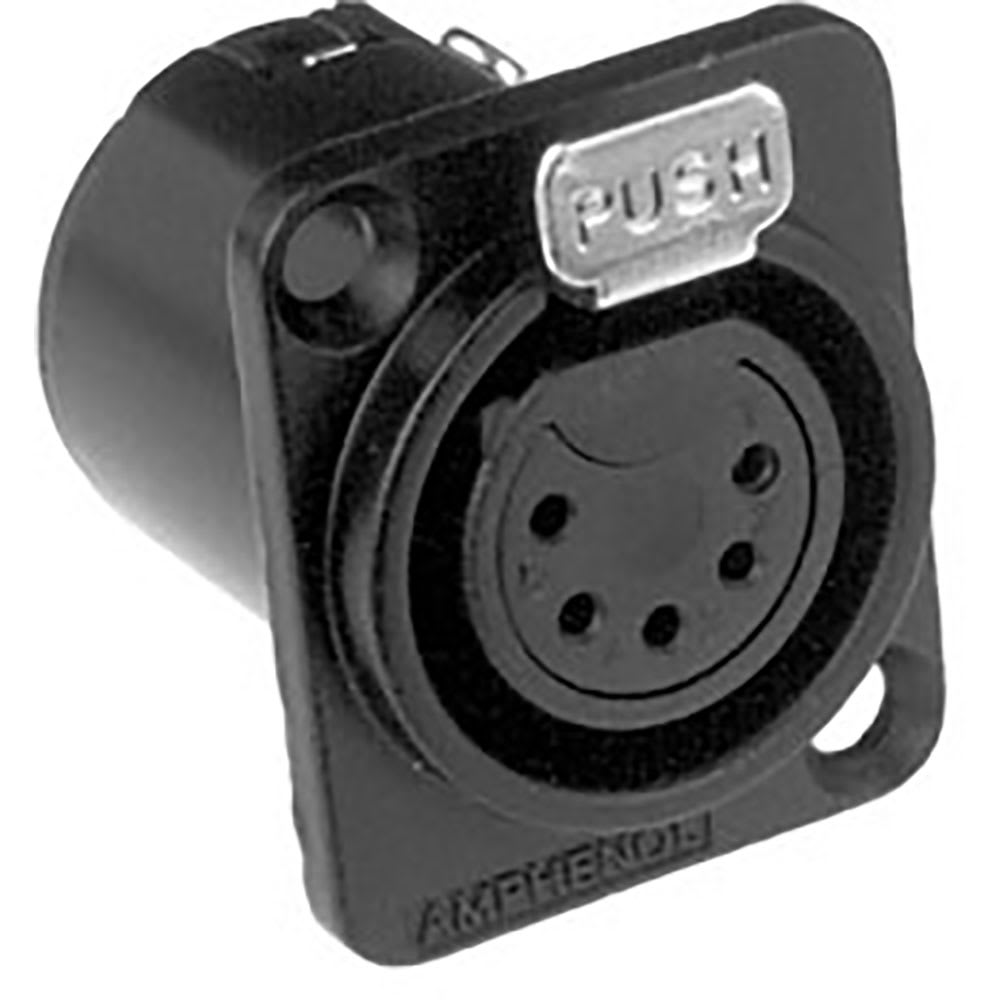

AC5FDZB
Amphenol Audio
Circular Connectors
SOCKET, XLR, PANEL, UNIFIED, 5POLE
Характеристики
| No. of Contacts | 5Contacts |
| Gender | Socket |
| Connector Mounting | Panel Mount |
| Contact Plating | Silver Plated Contacts |
| Connector Body Material | Metal Body |
| Product Range | AC Series |
| Colour | Black |
| Connector Colour | Black |
| Contact Resistance | 3mohm |
| Contact Termination | Solder |
| Current Rating | 7.5A |
| Flammability Rating | UL94V-0 |
| Insulation Resistance | 1000Mohm |
| Mechanical Life | 1000 mating cycles |
| Operating Temperature Max | 75°C |
| Operating Temperature Min | -25°C |
| Termination Method | Solder |
| Voltage Rating VAC | 50V |
| Wire Size AWG Max | 18AWG |
AC5FDZBAmphenol AudioCircular Connectors
