Характеристики
| Peak Repetitive Off-State Voltage, Vdrm | 600V |
| On State RMS Current IT(rms) | 200mA |
| Triac Case Style | SOIC |
| Gate Trigger Current Max (QI), Igt | 5mA |
| Gate Trigger Voltage Max Vgt | 900mV |
| Peak Gate Power | - |
| Peak Non Rep Surge Current Itsm 50Hz | 7.3A |
| Holding Current Max Ih | 20mA |
| No. of Pins | 8Pins |
| Operating Temperature Max | 125°C |
| MSL | - |
| SVHC | No SVHC (17-Dec-2015) |
| Holding Current Max Ih | 20mA |
| Operating Temperature Min | -30°C |
| Operating Temperature Range | -30°C to +125°C |
| Thyristor Case | SOIC |

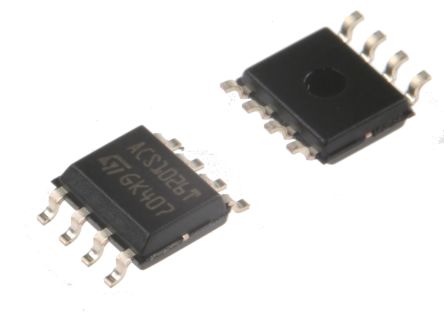

ACS102-6T1-TRSTMicroelectronicsTRIACs
