Характеристики
| Resistance kOhm | 10 |
| Number of Pots | 2 |
| Taps per POT | 256 |
| Track Taper | Linear |
| Interfaces | 2-Wire |
| Interfaces | I²C |
| °C | 30 |
| Bandwidth kHz | 650 |
| Supply Current nA | 100 |
| Tolerance % | 30 |
| Supply Voltage Min. V | 2.7 |
| Supply Voltage Max. V | 5.5 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 105 |
| Package Type | SOIC |
| Pins | 16 |
| Mounting Type | SMD |
| MSL | Level-1 |
| Packaging | Tube |
| Length mm | 10 |
| Width mm | 4 |
| Height mm | 1.5 |
| Reflow Temperature Max. °C | 260 |

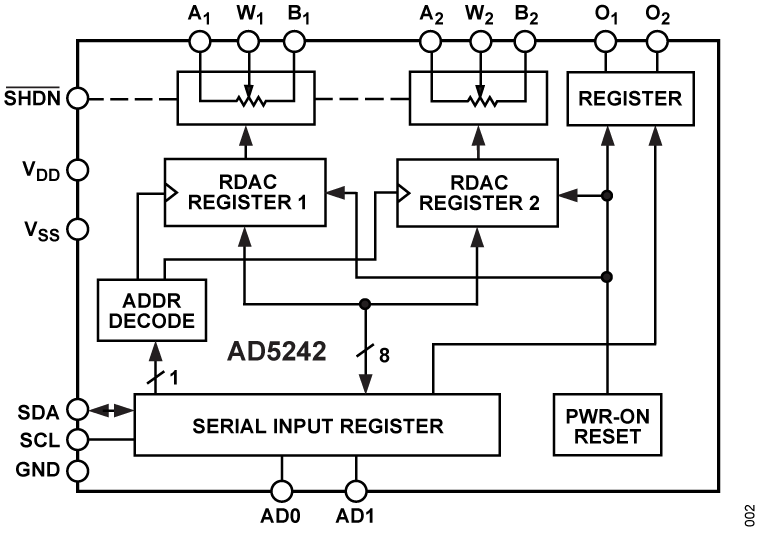

AD5242BRZ10Analog DevicesDigital Potentiometers
