Характеристики
| Resolution (Bits) | 8bit |
| Sampling Rate | 1.88kSPS |
| Data Interface | Parallel, CMOS / TTL |
| Supply Voltage Range - Analogue | 5V |
| Supply Current | 8mA |
| Digital IC Case Style | DIP |
| No. of Pins | 28 |
| Operating Temperature Range | 0°C to +70°C |
| Base Number | 7581 |
| IC Case Style | DIP |
| IC Generic Number | 7581 |
| IC Temperature Range | Commercial |
| Interface Type | Parallel, CMOS / TTL |
| Linearity Error | 1.875% |
| Linearity Error ADC / DAC + | 14LSB |
| Linearity Error ADC / DAC - | 14LSB |
| Logic Function Number | 7581 |
| No. of Bits | 8 |
| No. of Channels | 8 |
| Operating Temperature Max | 70°C |
| Operating Temperature Min | 0°C |
| Package / Case | DIP |
| Sample Rate | 1.88KSPS |
| Supply Voltage Max | 5V |
| Supply Voltage Min | 5V |
| Termination Type | Through Hole |

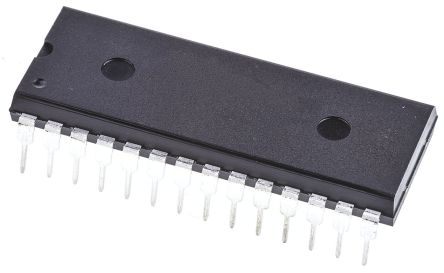

AD7581JNZAnalog DevicesAnalog to Digital Converters (ADCs)
