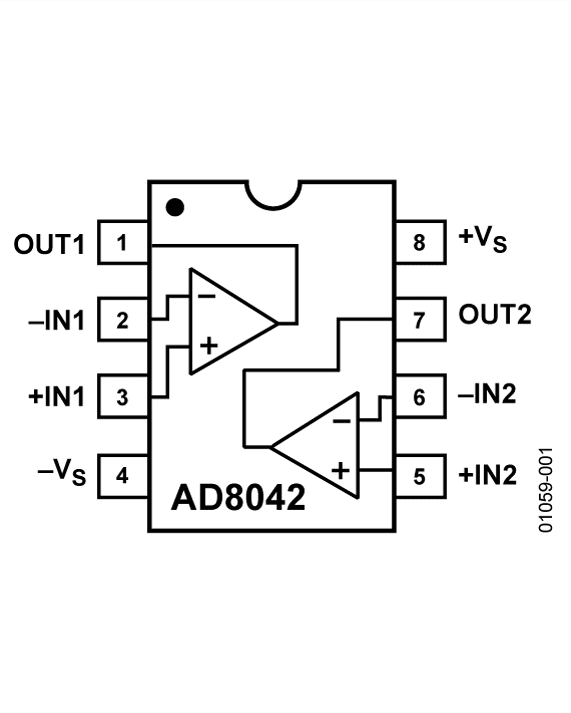

AD8042ARZ
Amplifiers - Op Amps, Buffer, Instrumentation
Slew Rate V / Input Voltage Noise Density nV
Характеристики
| Amplifier Type | Low Power |
| Gain Bandwidth MHz | 160 |
| us | 200 |
| Input Offset Voltage mV | 3 |
| Input Bias Current uA | 1.2 |
| Amplifiers | 2 |
| Common Mode Rejection Ratio (CMRR) dB | 68 |
| Power Supply Rejection Ratio (PSRR) dB | 72 |
| √Hz | 16 |
| Output Current per Channel mA | 50 |
| Supply Current mA | 12 |
| Single Supply Voltage Min. V | 1.5 |
| Single Supply Voltage Max. V | 6 |
| Dual Supply Voltage Min. V | 3 |
| Dual Supply Voltage Max. V | 12 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 85 |
| Package Type | NSOIC |
| Pins | 8 |
| Mounting Type | SMD |
| MSL | Level-1 |
| Packaging | Tube |
| Length mm | 5 |
| Width mm | 4 |
| Height mm | 1.5 |
| Power Supply Type | Single |
| Power Supply Type | Dual |
| Reflow Temperature Max. °C | 260 |
AD8042ARZAnalog DevicesAmplifiers - Op Amps, Buffer, Instrumentation
