Характеристики
| No. of Circuits | 3 |
| Supply Current | 25mA |
| Supply Voltage Range | ± 4.5V to ± 5.5V |
| Operating Temperature Range | -40°C to +85°C |
| Analogue Switch Case Style | TSSOP |
| No. of Pins | 24 |
| Multiplexer Configuration | 2:1 |
| Analogue Multiplexer Type | Triple 2:1 |
| Base Number | 8183 |
| IC Generic Number | 8183 |
| IC Temperature Range | Commercial |
| Interface Type | Parallel |
| Logic Function Number | 8183 |
| No. of Channels | 3 |
| No. of Multiplexers | 3 |
| On Resistance Rds(on) | 0.3ohm |
| Operating Temperature Max | 85°C |
| Operating Temperature Min | -40°C |
| Package / Case | TSSOP |
| Power Dissipation Pd | 1000mW |
| Power Dissipation Pd | 1000mW |
| Supply Voltage | 12V |
| Supply Voltage Max | 5.5V |
| Supply Voltage Min | 4.5V |
| Supply Voltage Source | Dual |
| Termination Type | SMD |

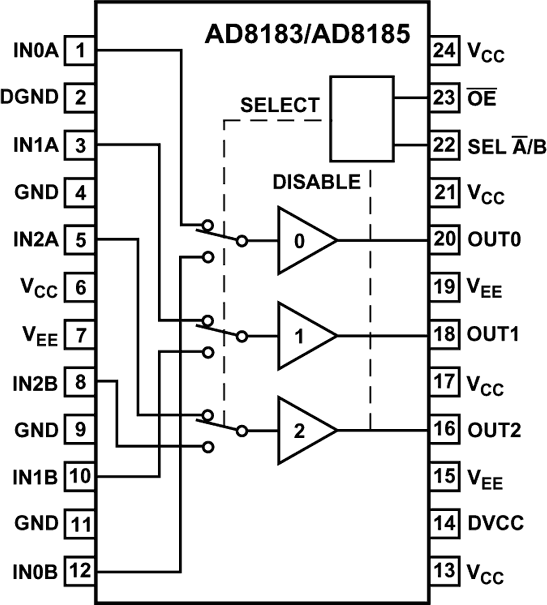

AD8183ARUZAnalog DevicesDecoders and Multiplexers
