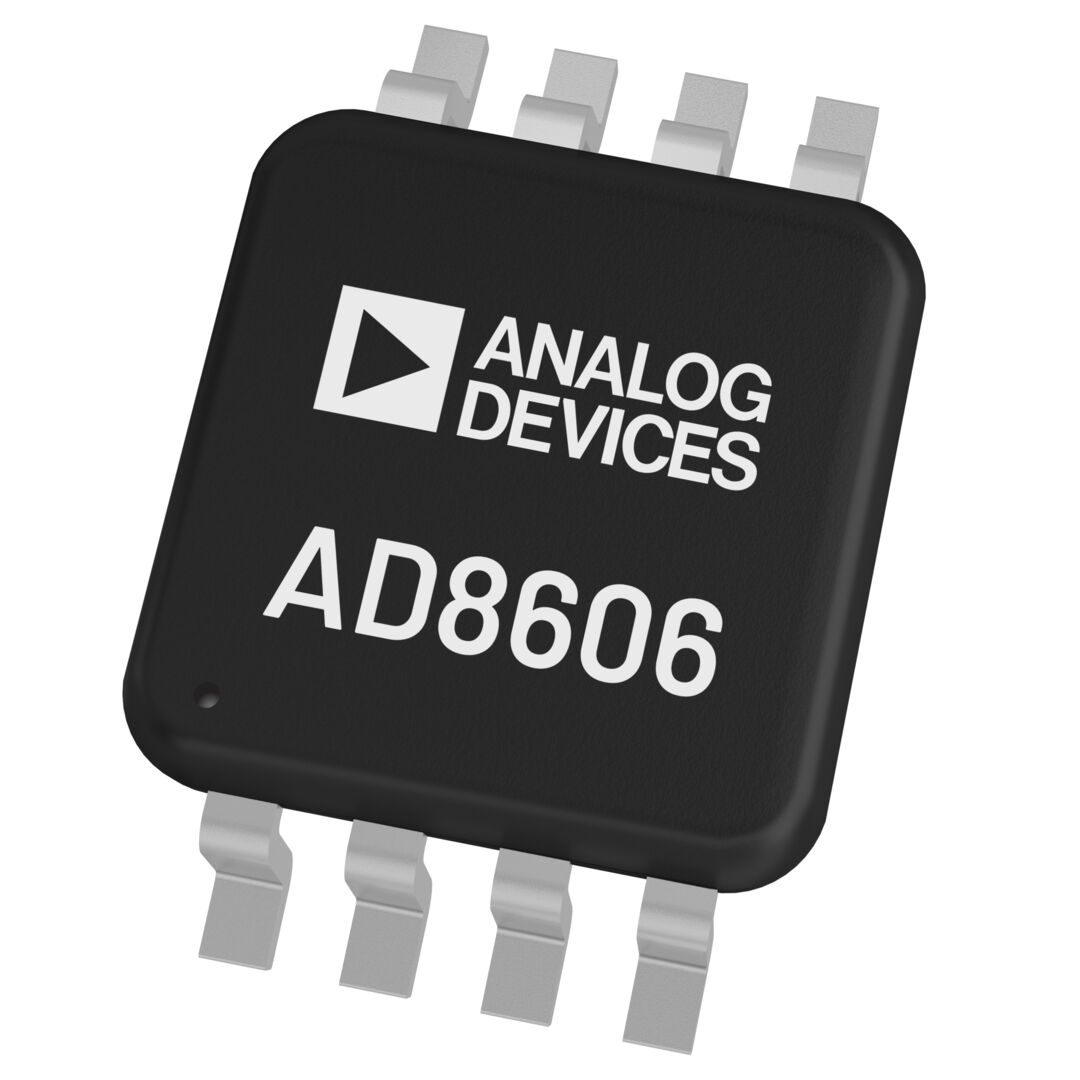

AD8606ARMZ-R7
Amplifiers - Op Amps, Buffer, Instrumentation
Slew Rate V / Voltage Gain mV / Input Voltage Noise Density nV
Характеристики
| Amplifier Type | Precision |
| Amplifier Type | CMOS |
| Gain Bandwidth MHz | 10 |
| us | 5 |
| Input Offset Voltage uV | 80 |
| Input Bias Current fA | 200 |
| Amplifiers | 2 |
| Common Mode Rejection Ratio (CMRR) dB | 85 |
| Power Supply Rejection Ratio (PSRR) dB | 80 |
| V | 300 |
| √Hz | 8 |
| Output Current per Channel mA | 80 |
| Supply Current mA | 1 |
| Single Supply Voltage Min. V | 2.7 |
| Single Supply Voltage Max. V | 5.5 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 125 |
| Package Type | MSOP |
| Pins | 8 |
| Mounting Type | Surface Mount |
| MSL | Level-1 |
| Packaging | Tape & Reel |
| Length mm | 3 |
| Width mm | 3 |
| Height mm | 0.8 |
| Power Supply Type | Single |
| Reflow Temperature Max. °C | 260 |
