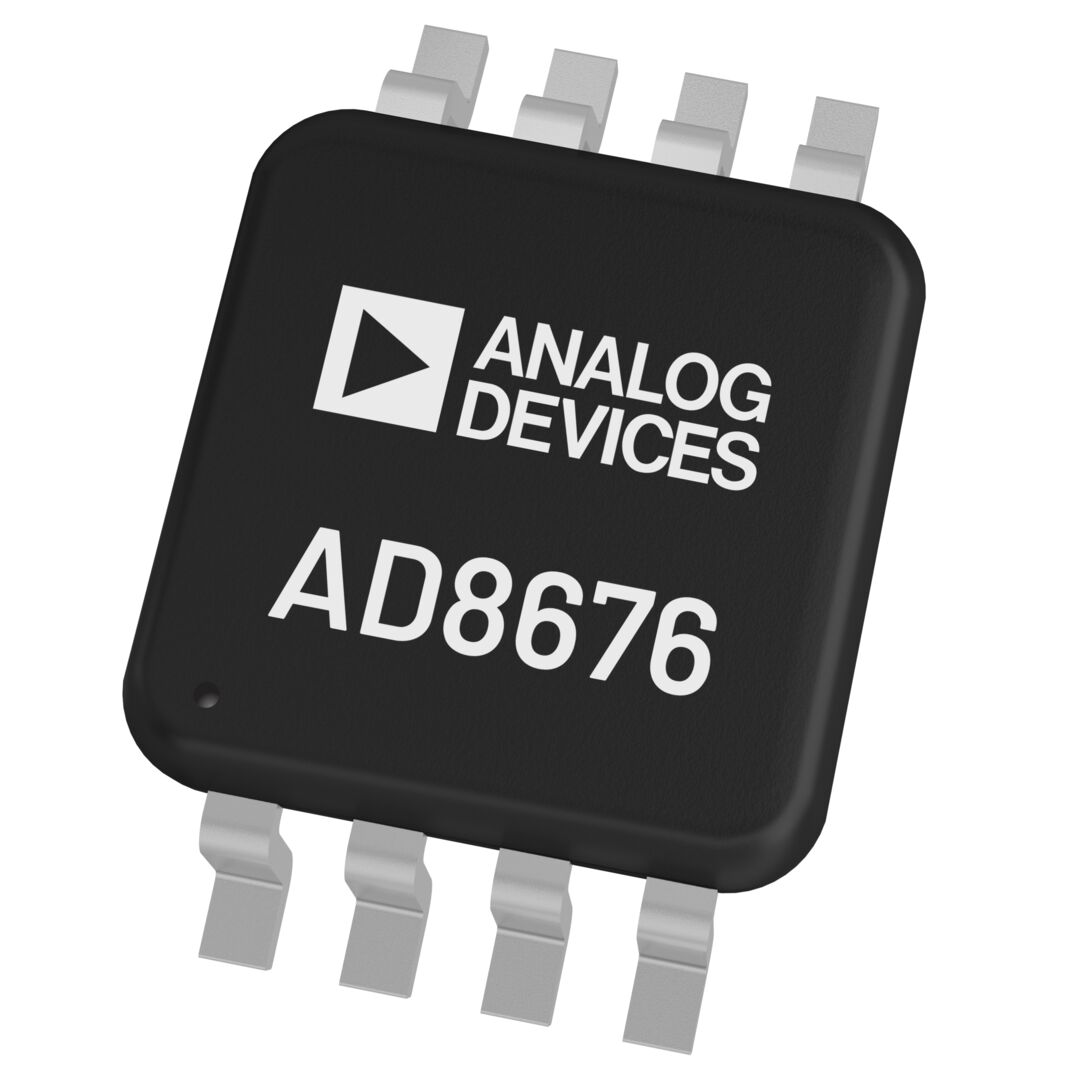

AD8676ARMZ
Amplifiers - Op Amps, Buffer, Instrumentation
Slew Rate V / Input Voltage Noise Density nV
Характеристики
| Amplifier Type | Ultra Precision |
| Gain Bandwidth MHz | 10 |
| us | 2.5 |
| Input Offset Voltage uV | 12 |
| Input Bias Current nA | 2 |
| Amplifiers | 2 |
| Common Mode Rejection Ratio (CMRR) dB | 105 |
| Power Supply Rejection Ratio (PSRR) dB | 106 |
| √Hz | 2.8 |
| Output Current per Channel mA | 20 |
| Supply Current mA | 2.5 |
| Dual Supply Voltage Min. V | 5 |
| Dual Supply Voltage Max. V | 18 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 125 |
| Package Type | MSOP |
| Pins | 8 |
| Mounting Type | SMD |
| MSL | Level-1 |
| Packaging | Tube |
| Length mm | 3 |
| Width mm | 3 |
| Height mm | 0.8 |
| Power Supply Type | Dual |
| Reflow Temperature Max. °C | 260 |
AD8676ARMZAnalog DevicesAmplifiers - Op Amps, Buffer, Instrumentation
