Характеристики
| Configuration | 4:1 |
| Circuits | 1 |
| ON Delay ns | 355 |
| ON Resistance (Rds(on)) Ohm | 4 |
| Supply Current uA | 1 |
| Supply Voltage Min. V | 5 |
| Supply Voltage Max. V | 16.5 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 125 |
| Package Type | TSSOP |
| Pins | 14 |
| Mounting Type | SMD |
| Packaging | Tube |
| Length mm | 5 |
| Width mm | 4.4 |
| Height mm | 1 |
| Reflow Temperature Max. °C | 260 |

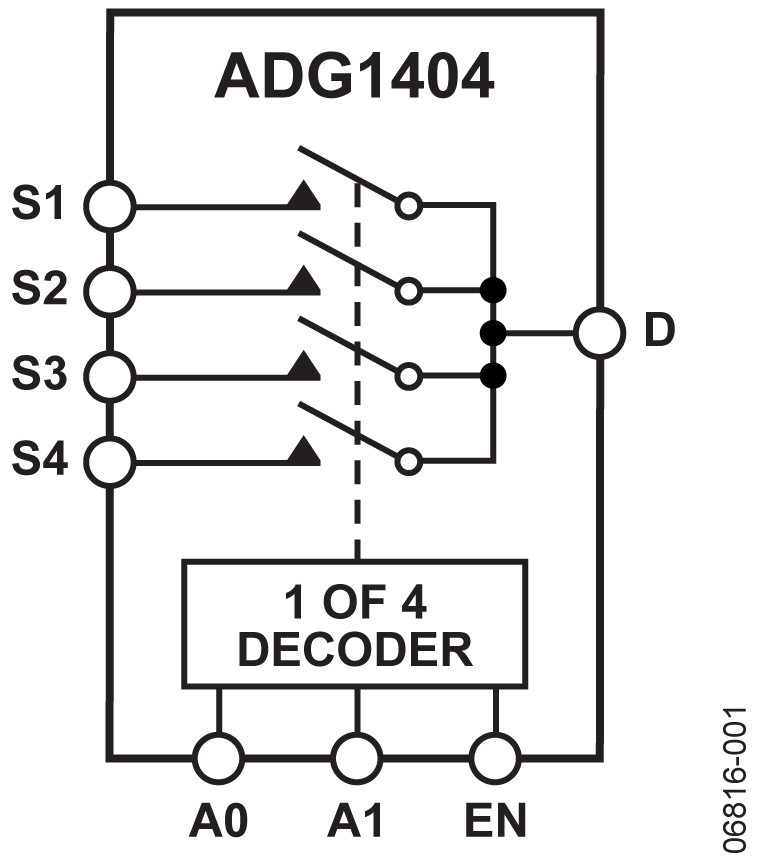

ADG1404YRUZAnalog DevicesAnalog Switches and Multiplexers
