Характеристики
| Configuration | 4:1 |
| Circuits | 1 |
| ON Delay ns | 250 |
| ON Resistance (Rds(on)) Ohm | 350 |
| Supply Current uA | 100 |
| Supply Voltage Min. V | 15 |
| Supply Voltage Max. V | 22 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 85 |
| Package Type | NSOIC |
| Pins | 16 |
| Mounting Type | SMD |
| Packaging | Tube |
| Length mm | 10 |
| Width mm | 4 |
| Height mm | 1.5 |

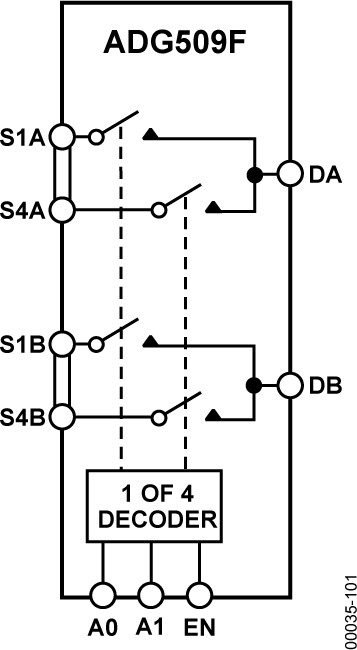

ADG509FBRNZAnalog DevicesAnalog Switches and Multiplexers
