Характеристики
| Configuration | SPDT |
| Channels | 2 |
| ON Resistance (Rds(on)) mOhm | 51 |
| ON Delay ns | 56 |
| Supply Current uA | 1 |
| Supply Voltage Min. V | 1.8 |
| Supply Voltage Max. V | 5.5 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 85 |
| Package Type | MSOP |
| Pins | 10 |
| Mounting Type | SMD |
| Packaging | Tube |
| Length mm | 3 |
| Width mm | 3 |
| Height mm | 0.9 |
| Reflow Temperature Max. °C | 260 |

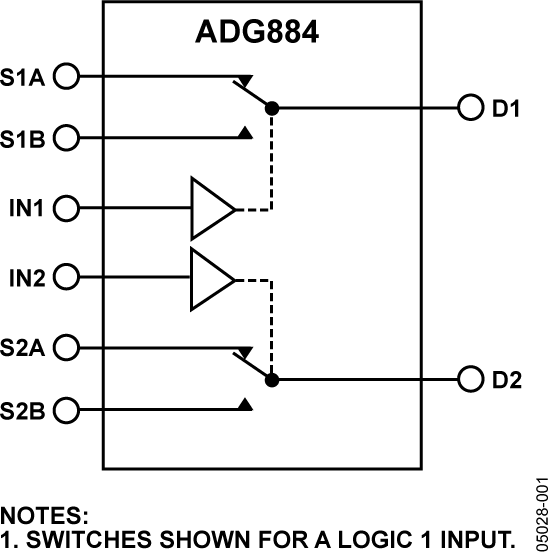

ADG884BRMZAnalog DevicesAnalog Switches and Multiplexers
