Характеристики
| Channels | 3 |
| Isolation Voltage (RMS) kV | 5 |
| Polarity | Unidirectional |
| Data Rate Kbps | 500 |
| Isolation Type | Magnetic |
| Supply Current mA | 2 |
| Supply Voltage Min. V | 3.3 |
| Supply Voltage Max. V | 5 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 85 |
| Package Type | SOIC |
| Pins | 16 |
| Mounting Type | Surface Mount |
| MSL | Level-1 |
| Packaging | Tube |
| Length mm | 10.5 |
| Width mm | 7.6 |
| Height mm | 2.35 |
| Reflow Temperature Max. °C | 260 |

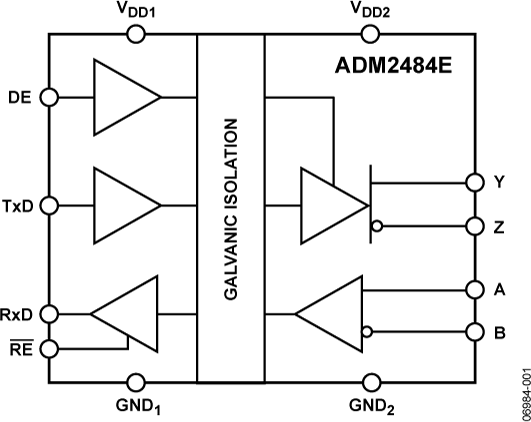

ADM2484EBRWZAnalog DevicesDigital Isolators
