Характеристики
| Resolution (Bits) | 24bit |
| Sampling Rate | 2kSPS |
| Input Channel Type | Differential, Single Ended |
| Data Interface | Serial, SPI |
| Supply Voltage Type | Single |
| Supply Voltage Min | 2.7V |
| Supply Voltage Max | 5.25V |
| ADC / DAC Case Style | TSSOP |
| No. of Pins | 28Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 105°C |
| Product Range | Octal 24-Bit Sigma-Delta ADCs |
| Automotive Qualification Standard | - |
| RoHS Phthalates Compliant | Yes |
| MSL | MSL 2 - 1 year |
| SVHC | No SVHC (27-Jun-2018) |
| Base Number | 1248 |
| IC Case Style | TSSOP |
| No. of Channels | 7Channels |
| Operating Temperature Range | -40°C to +125°C |
| Supply Current | 230µA |
| Supply Voltage Range | 2.7V to 5.25V |
| Supply Voltage Range - Analogue | -2.5V to 0V, 2.7V to 5.25V |
| Supply Voltage Range - Digital | 2.7V to 5.25V |
| Termination Type | Surface Mount Device |

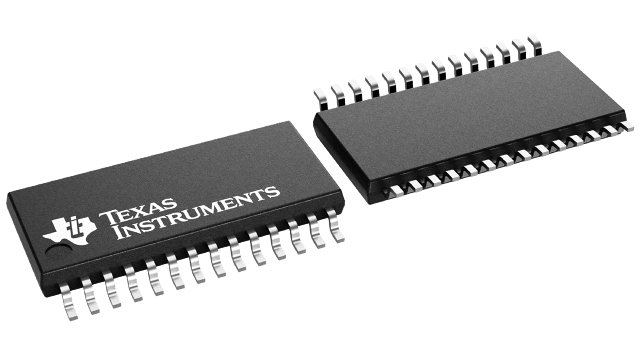

ADS1248IPWTexas InstrumentsAnalog to Digital Converters (ADCs)
