Характеристики
| Resolution, Bits | 16bit |
| Sampling Rate | 40kSPS |
| No. of Channels | 1 |
| Input Type | Single Ended |
| Interface Type | Serial, SPI |
| Voltage, Supply Min | 4.75V |
| Voltage, Supply Max | 5.25V |
| Termination Type | SMD |
| Case Style | SOIC |
| No. of Pins | 16 |
| Operating Temperature Range | -40°C to +85°C |
| Base Number | 7813 |
| Linearity Error, ADC/DAC + | 2LSB |
| Linearity Error, ADC/DAC - | 1LSB |
| No. of Bits | 16 |
| Temp, Op. Max | 85°C |
| Temp, Op. Min | -40°C |
| Time, Conversion | 20µs |

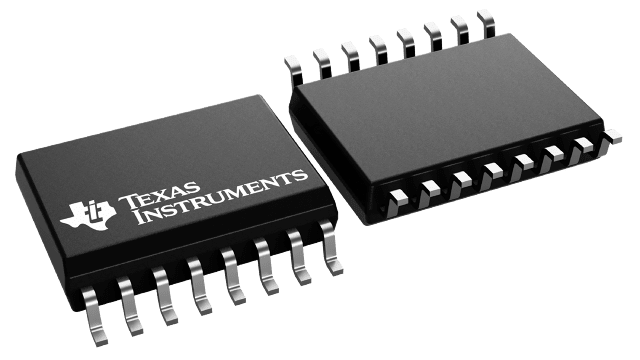

ADS7813UBTexas InstrumentsAnalog to Digital Converters (ADCs)
