Характеристики
| Load Voltage Max | 350V |
| Load Current | 120mA |
| On State Resistance Max | 25ohm |
| Contact Configuration | DPST-NO |
| Isolation Voltage | 5kV |
| Forward Current If | 1.2mA |
| Relay Terminals | Through Hole |
| SVHC | No SVHC (20-Jun-2011) |
| Approval Bodies | BSI |
| Approval Category | UL Recognised |
| Contact Configuration | DPST-NO |
| Contact Type | 2 Form A |
| Control Current Max | 3mA |
| Control Current Typ | 0.9mA |
| Control Voltage Type | DC |
| External Depth | 6.4mm |
| External Length / Height | 3.2mm |
| External Width | 9.86mm |
| Insulation Resistance | 1000Mohm |
| Leakage Current | 1µA |
| Load Current Max | 120mA |
| Load Current RMS Max | 120mA |
| Load Voltage DC Max | 350V |
| Load Voltage Range | 350V |
| No. of Pins | 8 |
| On State Resistance Max | 25ohm |
| Operating Temperature Max | 85°C |
| Operating Temperature Min | -40°C |
| Output Type | MOSFET |
| Package / Case | DIP |
| Peak Load Voltage + | 350VAC |
| Power Rating | 850mW |
| RMS Load Voltage Max | 350V |
| Surge Current | 0.36A |
| Terminal Type | THT |
| Turn Off Time | 2ms |
| Turn On Time | 0.8ms |

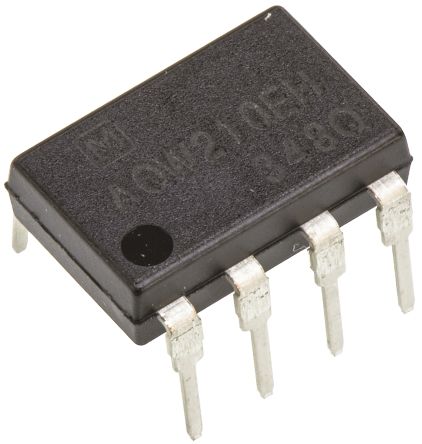

AQW210EHPanasonicSolid State Relays
