Характеристики
| Series | ARA |
| Max Coil Operating Frequency | 1GHz |
| Voltage, Coil DC Nom | 12V |
| Resistance, Coil | 1.028kohm |
| No. of Poles | 2 |
| Contact Configuration | DPDT |
| Voltage, Contact DC Max | 30V |
| Max Contact Current DC | 1A |
| Mounting Type | SMT |
| External Length / Height | 5.9mm |
| Width, External | 9.7mm |
| External Depth | 9.7mm |
| Coil Current | 11.7mA |
| Contact Material | Gold-clad silver alloy |
| Contact Style | 2 Form C |
| DC Coil Power | 140mW |
| No. of Mechanical Operations | 100000000 |
| Resistance, Contact | 75mohm |
| Temp, Op. Max | +85°C |
| Temp, Op. Min | -40°C |
| Termination Type | SMD |
| Time, Operating | 4ms |
| Time, Release | 4ms |
| VSWR | 1.2 |
| Current, Switching DC Max | 1A |
| Min Contact Current | 10mA |
| Power, Switching Max | 3W |
| Resistance, Insulation | 100Mohm |
| Signal Isolation | 30dB |
| Voltage, Insulation Resistance | 500V dc |
| Voltage, switching AC/DC Max | 30V dc |

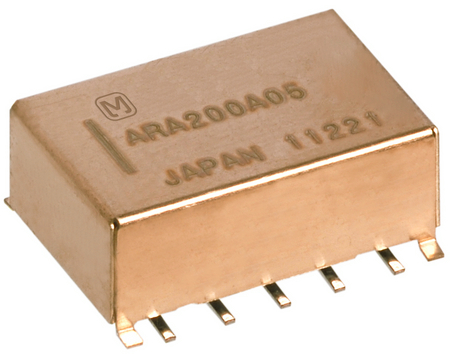

ARA200A12PanasonicSignal Relays
