Характеристики
| Device Core | ARM |
| Data Bus Width bit | 16 |
| Data Bus Width bit | 32 |
| Instruction Set Architecture | RISC |
| Family Name | AT91 |
| Clock Frequency Max. MHz | 55 |
| Program Memory Type | Flash |
| Program Memory Size kB | 64 |
| RAM Memory Size kB | 16 |
| Interfaces | I²C |
| Interfaces | SPI |
| Interfaces | USART |
| Interfaces | USB |
| ADC Channels | 8 |
| ADC Resolution bit | 10 |
| Os | 32 |
| Counters | 3 |
| Supply Voltage Min. V | 1.65 |
| Supply Voltage Max. V | 1.95 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 85 |
| Package Type | LQFP |
| Pins | 64 |
| Mounting Type | SMD |
| MSL | Level-3 |
| Packaging | Tray |
| Length mm | 10 |
| Width mm | 10 |
| Height mm | 1.45 |
| Reflow Temperature Max. °C | 260 |

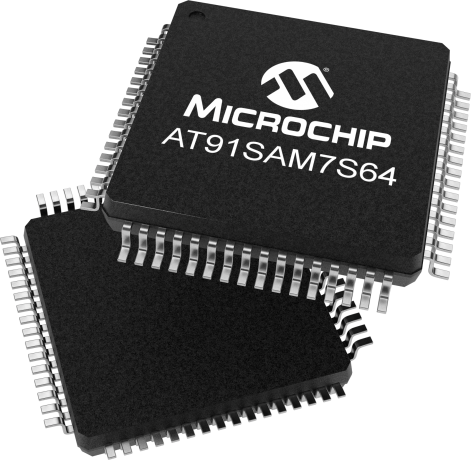

AT91SAM7S64C-AUMicrochipMicrocontrollers
