Характеристики
| Device Core | AVR |
| Data Bus Width bit | 8 |
| Instruction Set Architecture | RISC |
| Family Name | ATmega8 |
| Clock Frequency Max. MHz | 16 |
| Program Memory Type | Flash |
| Program Memory Size KB | 8 |
| Data Memory Size B | 512 |
| RAM Memory Size KB | 1 |
| Interfaces | 1x UART |
| Interfaces | 1x SPI |
| Interfaces | 1x I²C |
| ADC Channels | 8 |
| ADC Resolution bit | 10 |
| Os | 23 |
| Counters | 3 |
| Comparators | 1 |
| Supply Voltage Min. V | 4.5 |
| Supply Voltage Max. V | 4.5 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 85 |
| Package Type | TQFP |
| Pins | 32 |
| Mounting Type | SMD |
| MSL | Level-3 |
| Packaging | Tray |
| Length mm | 7 |
| Width mm | 7 |
| Height mm | 1.2 |
| Reflow Temperature Max. °C | 260 |

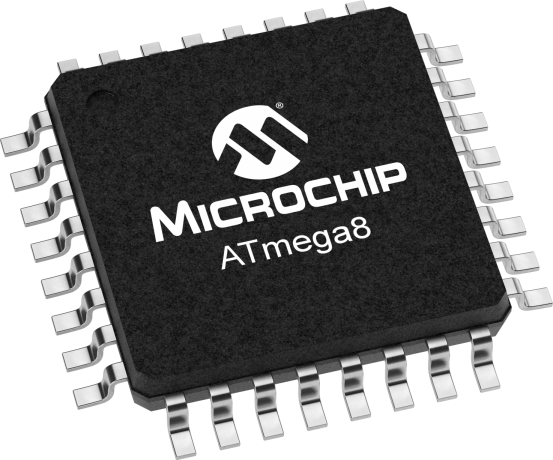

ATMEGA8-16AUMicrochipMicrocontrollers
