Характеристики
| Device Core | ARM |
| Data Bus Width bit | 32 |
| Instruction Set Architecture | RISC |
| Clock Frequency Max. MHz | 84 |
| Program Memory Type | Flash |
| Program Memory Size kB | 512 |
| RAM Memory Size kB | 64 |
| Interfaces | CAN |
| Interfaces | I²C |
| Interfaces | SPI |
| Interfaces | USART |
| Interfaces | TWI |
| Interfaces | PWM |
| Interfaces | SDIO |
| ADC Channels | 16 |
| ADC Resolution bit | 12 |
| Os | 103 |
| Counters | 9 |
| Supply Voltage Min. V | 1.62 |
| Supply Voltage Max. V | 1.95 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 85 |
| Package Type | LQFP |
| Pins | 144 |
| Mounting Type | SMD |
| MSL | Level-3 |
| Packaging | Tray |
| Length mm | 20 |
| Width mm | 20 |
| Height mm | 1.6 |
| Reflow Temperature Max. °C | 260 |

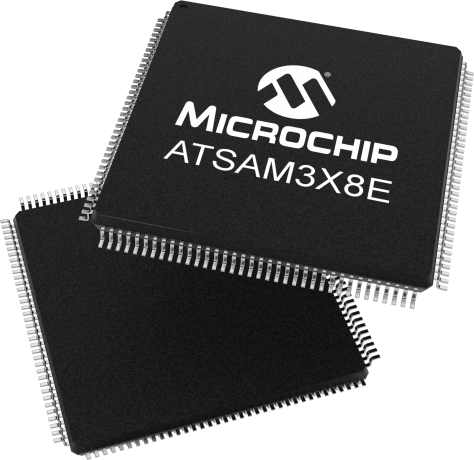

ATSAM3X8EA-AUMicrochipMicrocontrollers
