Характеристики
| Series | Series B - ESD |
| Switch Function Type | On-Off-Mom |
| Contact Configuration | SPDT |
| Voltage, Contact AC Max | 28V ac |
| Voltage, Contact DC Max | 28V dc |
| Max Contact Current AC | 100mA |
| Max Contact Current DC | 100mA |
| Terminal Type | Straight PCB - Bracket |
| Bush Thread Length | 2.7mm |
| Contact Material | Phosphor Bronze (Movable), Copper Alloy (Stationary) |
| Contact Plating | Gold |
| Current, Switching AC Max | 0.1A |
| Current, Switching AC Min | 0.1mA |
| Current, Switching DC Max | 0.1A |
| Current, Switching DC Min | 0.1mA |
| External Depth | 8mm |
| Height | 13.1mm |
| Lever Length | 10mm |
| No. of Electrical Operations | 50000 |
| No. of Poles | 1 |
| Power, Switching VA Max | 0.4VA |
| Resistance, Contact Max | 50mohm |
| Resistance, Insulation | 500Mohm |
| Shaft Diameter | 2.6mm |
| Switch Action | Nonshorting |
| Temp, Op. Max | 85°C |
| Temp, Op. Min | -30°C |
| Voltage, Contact AC Min | 20mV |
| Voltage, Contact DC Min | 20mV |
| Voltage, Insulation Resistance | 500V dc |
| Width, External | 10.16mm |

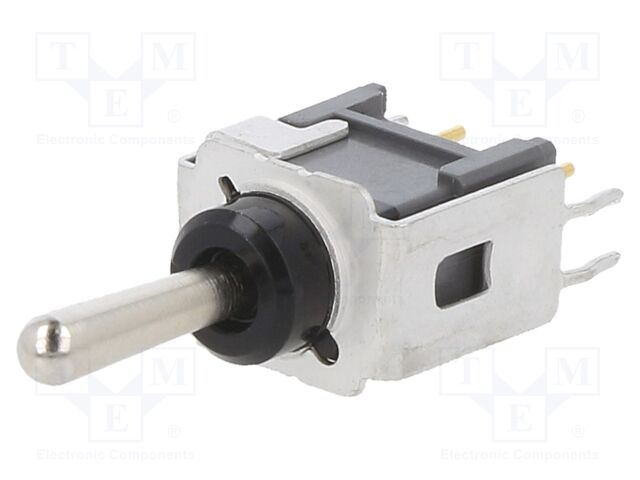

B19ABNKK SwitchesToggle Switches
