Характеристики
| Diode Type | Schottky |
| Repetitive Reverse Voltage Vrrm Max | 30V |
| Forward Current If(AV) | 100mA |
| Forward Voltage VF Max | 330mV |
| Reverse Recovery Time trr Max | 5ns |
| Forward Surge Current Ifsm Max | 750mA |
| Diode Case Style | SOT-23 |
| No. of Pins | 3 |
| SVHC | No SVHC (20-Jun-2011) |
| Common Connection | Cathode |
| Current If @ Vf | 2mA |
| Current Ifsm | 750mA |
| External Depth | 2.5mm |
| External Length / Height | 1.12mm |
| External Width | 3.05mm |
| Junction Temperature Tj Max | 150°C |
| Package / Case | SOT-23 |
| SMD Marking | DB2 |
| Termination Type | SMD |

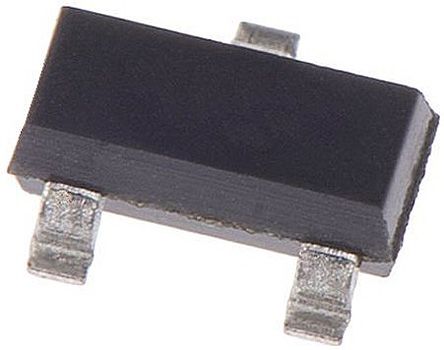

BAR43CFILMSTMicroelectronicsSchottky Diodes
