Характеристики
| Diode Configuration | Single |
| Repetitive Reverse Voltage Vrrm Max | 40V |
| Forward Current If(AV) | 500mA |
| Forward Voltage VF Max | 700mV |
| Forward Surge Current Ifsm Max | 2.5A |
| Operating Temperature Max | 150°C |
| Diode Case Style | SOD-323 |
| No. of Pins | 2Pins |
| Product Range | BAT165 Series |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (27-Jun-2018) |
| Alternate Case Style | SC-76 |
| Breakdown Voltage | 40V |
| Current If @ Vf | 250mA |
| Current Ifsm | 2.5A |
| Current Ir Max | 50µA |
| Device Marking | C |
| Diode Type | Schottky |
| Forward Current If Max | 750mA |
| Junction Temperature Tj Max | 150°C |
| Reel Quantity | 3000 |
| Reverse Voltage Vr Max | 40V |
| SMD Marking | C |
| Tape Width | 8mm |
| Termination Type | Surface Mount Device |
| Vr Ir Measurement Voltage | 30V |

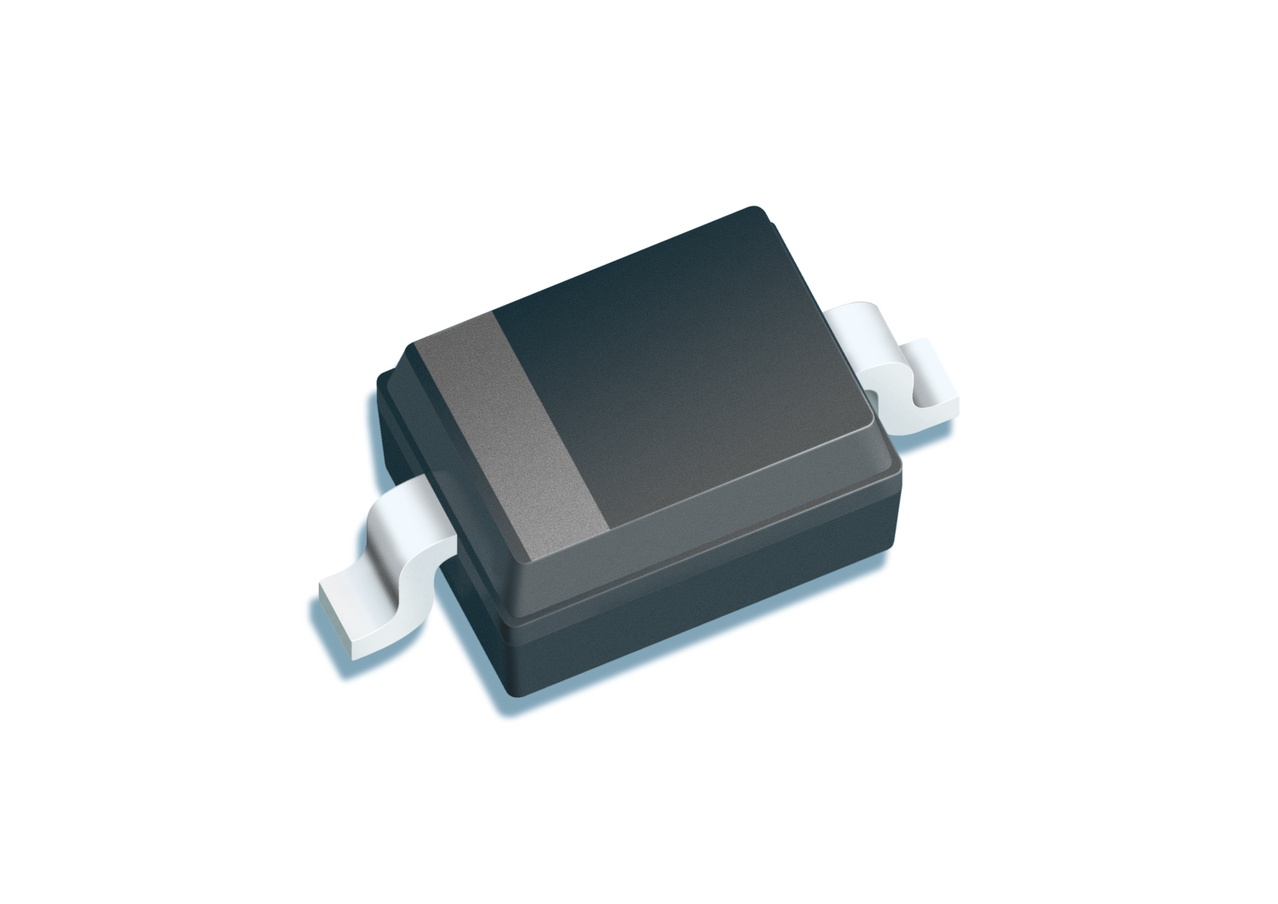

BAT165E6327HTSA1InfineonSchottky Diodes
