Характеристики
| Wavelength Typ | 920nm |
| Bandwidth | 250MHz |
| Half Angle | 20° |
| Dark Current | 1nA |
| Diode Case Style | T-1 3/4 (5mm) |
| No. of Pins | 2 |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 100°C |
| Active Area | 0.78mm² |
| Breakdown Voltage Vbr | 60V |
| Operating Temperature Range | -40°C to +100°C |
| Package / Case | T-1 3/4 |
| Peak Wavelength | 920nm |
| Reverse Voltage Vr Max | 60V |
| Rise Time | 2.5ns |
| Sensitivity | 0.55A/W |

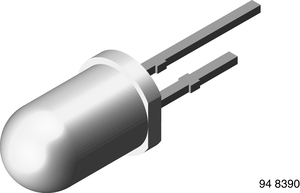

BPV10VishayPhotodiodes
