Характеристики
| Transistor Polarity | N Channel |
| Continuous Drain Current Id | 250mA |
| Drain Source Voltage Vds | 60V |
| On Resistance Rds(on) | 5ohm |
| Rds(on) Test Voltage Vgs | 10V |
| Threshold Voltage Vgs Typ | 2V |
| Power Dissipation Pd | 300mW |
| Operating Temperature Range | -55°C to +150°C |
| Transistor Case Style | SOT-23 |
| No. of Pins | 3 |
| Current Id Max | 250mA |
| Package / Case | SOT-23 |
| Power Dissipation Pd | 300mW |
| Termination Type | SMD |
| Transistor Type | Enhancement |
| Voltage Vds Typ | 60V |
| Voltage Vgs Max | 20V |
| Voltage Vgs Rds on Measurement | 10V |

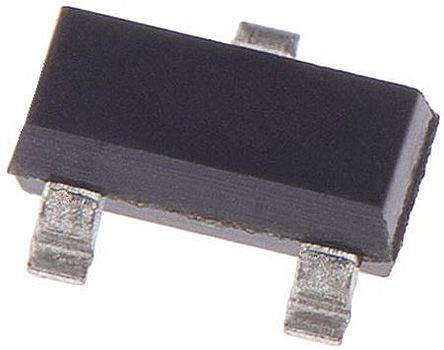

BS870-7-FDiodes Inc.MOSFETs
