Характеристики
| Peak Repetitive Off-State Voltage, Vdrm | 600V |
| On State RMS Current IT(rms) | 40A |
| Peak Non Rep Surge Current Itsm 50Hz | 400A |
| Holding Current Max Ih | 80mA |
| Gate Trigger Voltage Max Vgt | 1.5V |
| Peak Gate Power | 1W |
| Operating Temperature Range | -40°C to +125°C |
| Thyristor Case | RD-91 |
| No. of Pins | 3 |
| SVHC | No SVHC (20-Jun-2011) |
| Current Itsm | 300A |
| Current Itsm @ 60Hz | 420A |
| Current t2+g- | 50mA |
| Current t2-g+ | 100mA |
| Current t2-g- | 50mA |

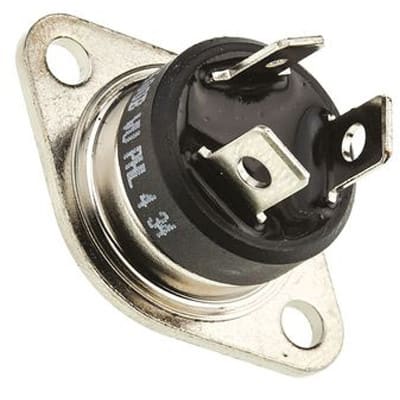

| Device Marking | BTA40-600B |
| Gate Trigger Current Igt (Q1) t2+g+ | 50mA |
| Gate Trigger Current Max, Igt | 50mA |
| Package / Case | RD-91 |
| Repetitive Reverse Voltage Vrrm Max | 600V |
| Termination Type | Quick Connect |
| Thyristor Type | Triac |
