Характеристики
| Relay Type | Control |
| Coil Voltage VDC Nom | 24V |
| Contact Current Max | 10A |
| Contact Voltage DC Nom | 690V |
| Contact Configuration | 3NO / 2NC |
| Coil Type | DC |
| Nom Operating Power | 5.4W |
| Relay Mounting | DIN Rail |
| External Width | 45mm |
| External Depth | 86mm |
| Approval Bodies | UL, CSA |
| Coil Operating Lower Percent Limit | 70% |
| Coil Operating Upper Percent Limit | 125% |
| Contact Material | Silver Nickle |
| DC Coil Power | 5.4W |
| External Length / Height | 77mm |
| IP/NEMA Rating | 2X |
| Insulation Voltage | 690V |
| Mounting Type | DIN Rail |
| No. of Poles | 5 |
| Operating Temperature Max | 60°C |
| Series | CAD |
| Standard | EN 60947 - 5 |

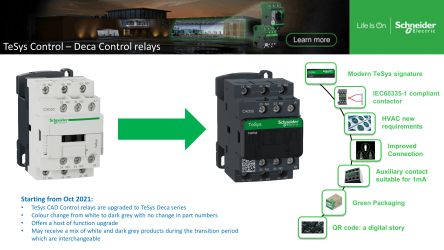

CAD32BDSchneider ElectricIndustrial Contactors
