Характеристики
| Logic Type | BCD to 7 Segment Decoder / Driver |
| No. of Outputs | 7 |
| Supply Voltage Range | 3V to 18V |
| Logic Case Style | TSSOP |
| No. of Pins | 16 |
| Operating Temperature Range | -55°C to +125°C |
| SVHC | No SVHC (19-Dec-2011) |
| Applications | Calculators and Meters, General Purpose Displays, Industrial Control Panels, Panel Meters |
| Logic IC Base Number | 4056 |
| Logic IC Family | CD4000 |
| Logic IC Function | BCD-to-7 Segment Decoder with Strobed-Latch Function |
| Output Current Max | 5.8mA |
| Package / Case | TSSOP |
| Supply Voltage Max | 18V |
| Supply Voltage Min | 3V |
| Termination Type | SMD |

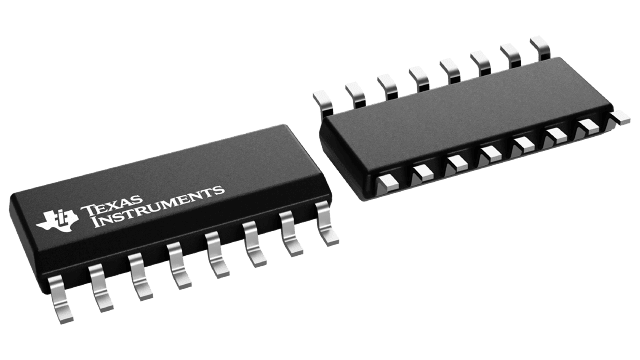

CD4056BPWTexas InstrumentsDisplay Drivers
