Характеристики
| Logic Type | Latch, 4-to-16 Line Decoder |
| No. of Outputs | 16 |
| Supply Voltage Range | 3V to 18V |
| Logic Case Style | SOIC |
| No. of Pins | 24 |
| Operating Temperature Range | -55°C to +125°C |
| SVHC | No SVHC (19-Dec-2011) |
| Applications | Address Decoding, Digital Multiplexing, Hexadecimal / BCD Decoding, Program Counter Decoding |
| Logic IC Base Number | 4515 |
| Logic IC Family | CD4000 |
| Logic IC Function | 4-Bit Latch / 4-to-16 Line Decoder |
| Output Current Max | 6.8mA |
| Package / Case | SOIC |
| Supply Voltage Max | 18V |
| Supply Voltage Min | 3V |
| Termination Type | SMD |

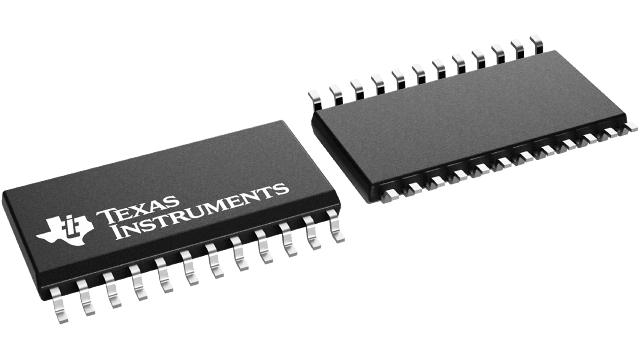

CD4515BMTexas InstrumentsIntegrated Circuits (ICs)
