Характеристики
| Logic Family / Base Number | 74HCT138 |
| Logic Type | Decoder / Demultiplexer |
| No. of Outputs | 8Outputs |
| Logic Case Style | SOIC |
| No. of Pins | 16Pins |
| Supply Voltage Min | 4.5V |
| Supply Voltage Max | 5.5V |
| Logic IC Family | 74HCT |
| Logic IC Base Number | 74138 |
| Operating Temperature Min | -55°C |
| Operating Temperature Max | 125°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| RoHS Phthalates Compliant | Yes |
| MSL | MSL 1 - Unlimited |
| SVHC | No SVHC (27-Jun-2018) |
| Applications | Data Routing, Memory Address Decoding |
| Base Number | 74 |
| IC Generic Number | 74HCT138 |
| Logic Function Number | 74138 |
| Logic IC Base Number | 74138 |
| Logic IC Function | 3-to-8 Line Inverting Decoder/Demultiplexer |
| No. of Gates | 1 |
| No. of Inputs | 3 |
| Operating Temperature Range | -55°C to +125°C |
| Output Current Max | 5.2mA |
| Supply Voltage Range | 4.5V to 5.5V |
| Termination Type | Surface Mount Device |

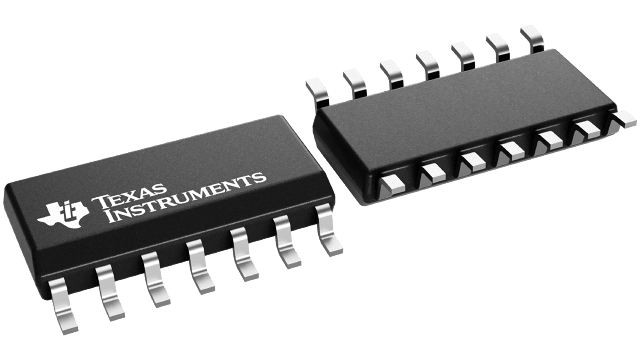

CD74HCT138MTexas InstrumentsDecoders and Multiplexers
