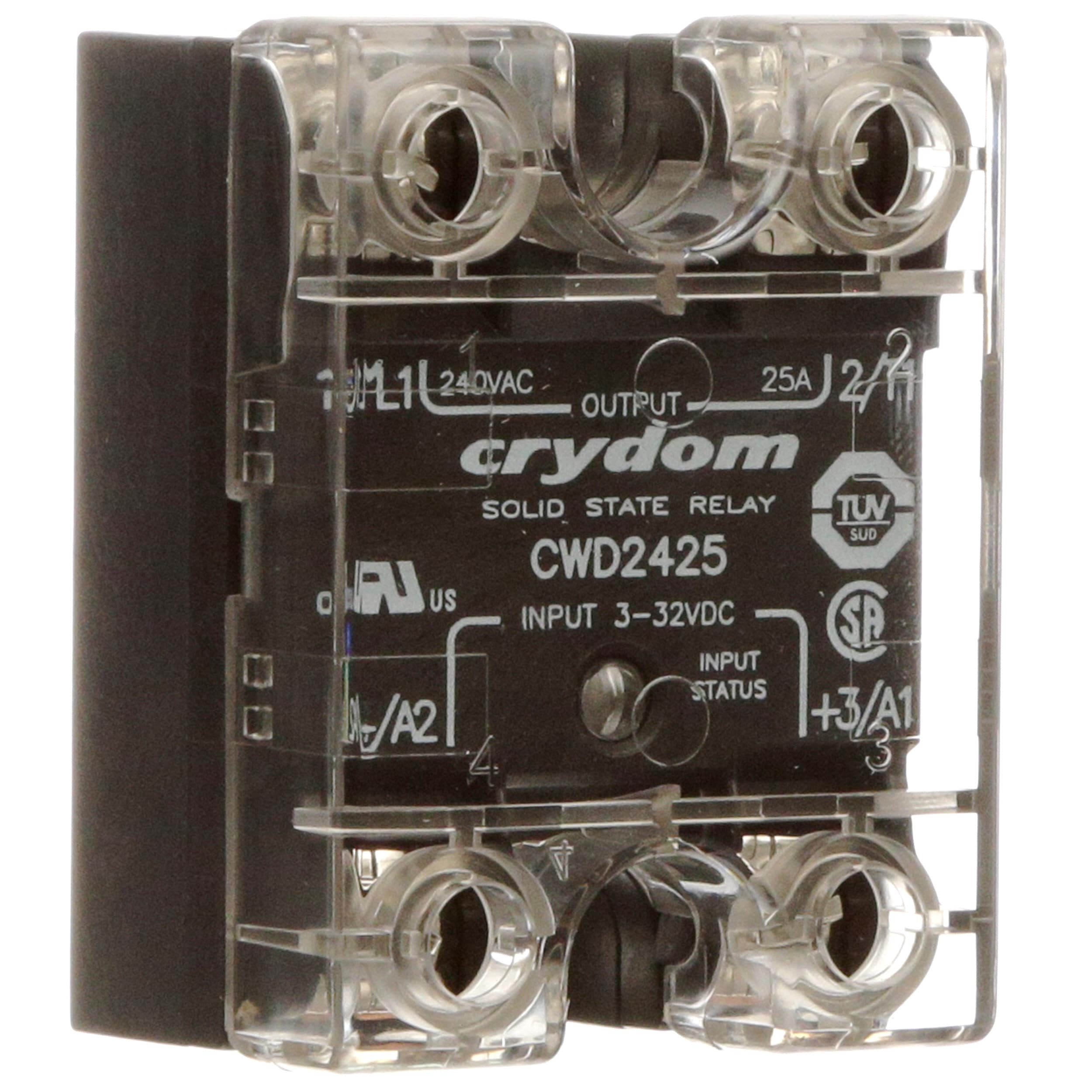

CWD2425
Sensata
Solid State Relays
SSR, 25A, 240VAC
Характеристики
| Control Voltage Range | 3V DC to 32V DC |
| Operating Voltage Range | 24Vrms to 280Vrms |
| Load Current | 25A |
| Isolation Voltage | 4kV |
| Control Voltage Type | DC |
| Relay Terminals | Screw |
| SVHC | No SVHC (20-Jun-2011) |
| Approval Bodies | CSA, VDE, CE |
| Approval Category | UL Recognised |
| Blocking Voltage | 600V |
| Control Current Typ | 10mA |
| Control Voltage DC Max | 32V |
| Control Voltage DC Min | 3V |
| External Depth | 58.4mm |
| External Length / Height | 33mm |
| External Width | 45.7mm |
| I2t | 1500s |
| Insulation Resistance | 1000Mohm |
| Leakage Current | 1mA |
| Load Current Max | 25A |
| Load Current Min | 0.15A |
| Load Current RMS Max | 25A |
| Operating Temperature Max | 80°C |
| Operating Temperature Min | -40°C |
| Output Type | SCR |
| RMS Load Current Min | 0.15A |
| RMS Load Voltage Max | 280V |
| RMS Load Voltage Min | 24V |
| Rate of Voltage Change dv / dt | 500V/µs |
| Series | CW24 |
| Surge Current | 600A |
| Terminal Type | Screw Type |
| Voltage Drop @ Rated Current | 1.3V |
